Heavy Duty 6-Sensor Parking Radar System with Distance Display and Audio Alert for Truck Car

30pts
MOQ
negotiable
가격
Heavy Duty 6-Sensor Parking Radar System with Distance Display and Audio Alert for Truck Car
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
전원공급장치: DC12V
작동 전압: 9-36V
알람 유형: 비 비 버즈
위치: 후면 / 전면
최대 출력: 2.5W
재료: 금속
호환성: 만능인
강조하다:

heavy duty parking radar system

,

6-sensor parking radar with display

,

truck car parking sensor with audio alert

기본 정보
원래 장소: 중국 선전
브랜드 이름: KINGCROWN
인증: RoHS
모델 번호: BG-S6S-YYYY
결제 및 배송 조건
포장 세부 사항: 표준 패키지 내보내기
배달 시간: 45일
지불 조건: , t/t, l/c
공급 능력: 1000sets/월
제품 설명

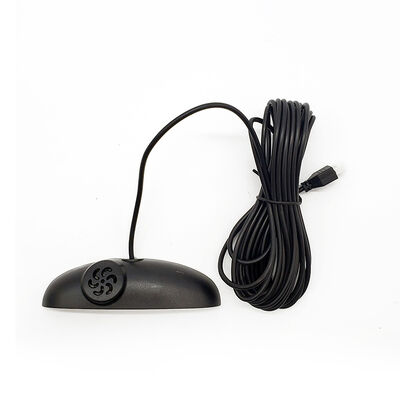

Heavy Duty 6-Sensor Parking Radar System with Distance Display and Audio Alert for Truck Car
Product Overview

The Heavy Duty 6-Sensor Parking Radar System is engineered to provide superior safety and precision for heavy-duty vehicles such as trucks, vans, buses, and SUVs. Designed to assist with reversing and parking in tight spaces, this system utilizes 6 ultrasonic sensors to deliver comprehensive coverage, ensuring obstacles are detected from multiple angles.

With a clear LED distance display and audible alerts, the system provides real-time feedback to help prevent collisions, ensuring safe parking and maneuvering. Whether you're parking in busy urban areas, loading docks, or tight parking spots, this system enhances your vehicle's reversing capabilities, reducing the risk of accidents and protecting both the vehicle and nearby pedestrians or property.

Product Characteristics
  • 6 Ultrasonic Sensors: Provides full 360° detection coverage, ensuring every angle around the vehicle is monitored for obstacles including small objects or low barriers.

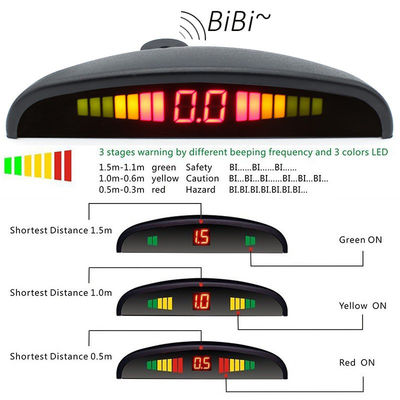

  • LED Distance Display: Clearly shows distance to obstacles with color-coded system (green, yellow, red) representing proximity in real-time.
  • Audible Alerts: Progressive audio warnings that increase in frequency as vehicle approaches obstacles.
  • Waterproof and Weatherproof Sensors: IP67 rating ensures reliable performance in all weather conditions including heavy rain or snow.
  • Wide Compatibility: Compatible with heavy-duty trucks, vans, buses, SUVs, RVs, and commercial vehicles operating on 12V DC power supply.
  • Adjustable Warning Volume: Customizable audio feedback to ensure clear warnings in any environment.
  • Easy Installation: No drilling required in most vehicles with complete wiring, connectors, and installation manual included.
Technical Specifications
Parameter Specification
Power Supply DC12V
Weight 0.65KG
Current Consumption 20mA-200mA
Operating Temperature -40°C to +80°C
Alarm Volume 70-80dB (30cm)
Working Voltage 9-36V
Alarm Type Bi Bi Buzz
Maximum Power 2.5W
Probe Size 22×20mm
Applicable Vehicle Universal car
Waterproof Rating IP67
Applications
  • Trucks and Commercial Vehicles: Enhances reversing safety in busy urban areas, loading docks, and tight parking spots.
  • Buses and Public Transport: Improves parking safety in urban areas and reduces accident likelihood in parking lots.
  • Heavy-Duty Construction Equipment: Improves maneuverability in construction sites and warehouses with limited visibility.
  • Vans and SUVs: Ensures safe reversing and parking in tight spaces for both personal and commercial use.
  • Fleet Vehicles: Provides safety assurance for entire fleets operating in urban or crowded environments.
Customer Support & Quality Assurance
  • 1-Year Warranty: Covers defects in materials and workmanship for peace of mind.
  • 24/7 Customer Support: Dedicated team available for installation assistance and troubleshooting.
  • Easy Installation: Includes all necessary components with detailed installation guide for straightforward setup.
