HD AHD Starlight Night Vision Side / Rear View Camera for Truck, Bus & Van

30 세트
MOQ
협상 가능
가격
HD AHD Starlight Night Vision Side / Rear View Camera for Truck, Bus & Van
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
제품: 170° 광각 및 별빛 야간 투시경을 갖춘 AHD 720P 트럭 측면 사각지대 카메라
보증: 1년
OEM, ODM: 지원하다
해결: 1024×720P
렌즈 각도: 170° 광각 어안
영상 신호: AHD / CVBS(전환 가능)
전압: DC 12V
방수등급: IP67 / IP68
어플리케이션: 트럭, 버스, 밴, RV, 상업용 차량
강조하다:

HD AHD starlight rear view camera

,

night vision truck backup camera

,

side view camera for bus van
기본 정보
원래 장소: 중국 광둥
브랜드 이름: KING CROWN
인증: RoHs
결제 및 배송 조건
포장 세부 사항: 판지 상자
배달 시간: 45일
지불 조건: T/T,L/C
공급 능력: 달 당 1000 세트
제품 설명
HD AHD Starlight Night Vision Side / Rear View Camera for Truck, Bus & Van
Designed for commercial vehicles and demanding driving environments, this AHD starlight night vision camera delivers a wide, clear, and reliable view for reversing, side monitoring, and blind-spot elimination. With a compact body, professional waterproof protection, and true color night imaging, it is an ideal solution for trucks, buses, vans, RVs, and fleet vehicles.
Ultra-Wide 170° Fisheye Viewing Angle
Equipped with a 170° ultra-wide fisheye lens, the camera significantly expands the field of view compared with standard 120°-130° cameras. It allows drivers to clearly monitor blind spots, adjacent lanes, and tight parking areas, improving overall driving and reversing safety.
True Starlight Color Night Vision
Using a starlight-level image sensor and AHD high-definition processing chip, the camera delivers full-color night images without infrared or white LED fill light. Even in low-light urban roads, parking garages, or night driving conditions, details remain clear, natural, and sharp—far superior to traditional black-and-white night vision cameras.
AHD / CVBS Dual Signal Output (Switchable)
The camera supports AHD and CVBS video output, making it compatible with a wide range of vehicle monitors and DVR systems.
  • Default output: AHD (higher clarity)

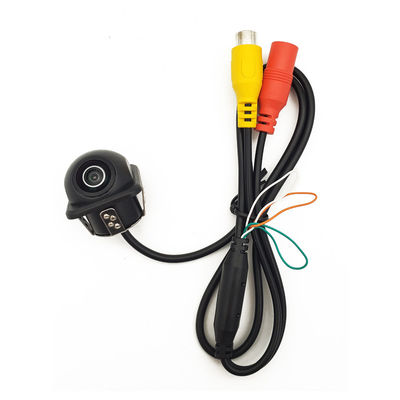

  • Cut the orange wire to switch to CVBS, offering flexible installation and system integration.
Adjustable Display Modes with Control Wires
Built-in control wires allow users to easily customize display behavior:
  • White wire: switch between normal image and mirror image
  • Green wire: enable or disable parking guide lines
This flexibility makes the camera suitable for front, rear, left, or right side installation.
IP67 / IP68 Waterproof, Fog-Proof & Shock-Resistant
The camera features a fully sealed structure with professional waterproof testing, ensuring stable operation in rain, snow, fog, dust, and extreme road conditions. It is designed to withstand vibration, impact, and long-term outdoor exposure—ideal for commercial and heavy-duty vehicles.

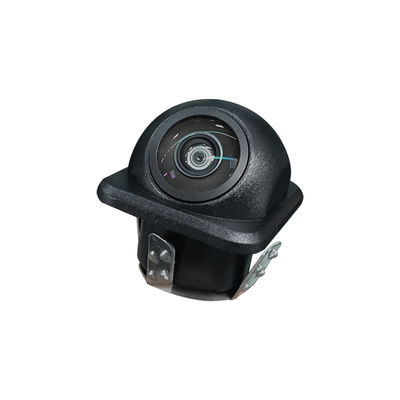

Compact Design, Easy Concealed Installation
With a small, low-profile housing, the camera integrates seamlessly into the vehicle body without affecting appearance. The compact size allows for discreet mounting while maintaining excellent image performance.
Multiple Connector Options Available
To meet different installation needs, the camera supports:
  • Aviation connector
  • AV (RCA) connector
  • BMW-style connector
Compatible with most aftermarket monitors and MDVR systems.
Key Specifications
Image Sensor PC1058
Resolution 1024 × 720P
Lens Angle 170° wide angle fisheye
Video Signal AHD / CVBS (switchable)
Voltage DC 12V
Waterproof Rating IP67 / IP68
Installation Position Front / Rear / Side
Application Truck, Bus, Van, RV, Commercial Fleet Vehicles
Ideal Applications
  • Truck and bus blind-spot monitoring
  • Side view and rear view reversing assistance
  • Fleet safety upgrades
  • Parking assistance in low-light environments
