Integrated Brake Light Camera System for Light Commercial Vehicles

30 세트
MOQ
협상 가능
가격
Integrated Brake Light Camera System for Light Commercial Vehicles
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
제품: Fiat Doblo / Opel Combo Vans용 AHD 후방 카메라
보증: 1년
OEM, ODM: 지원하다
제품 유형: 브레이크 라이트 유형 후방 카메라
차량 호환성: 피아트 도블로(2010~), 오펠 콤보(2011~2018)
장착 위치: 하이마운트 정지등(제3제동등)
이미지 센서: CMOS / AHD 센서(OEM 선택 가능)
비디오 시스템: AHD/CVBS(PAL/NTSC 옵션)
해결: 720P / 1080P(AHD), 480/600TVL(CVBS)
강조하다:

integrated brake light camera

,

commercial vehicle backup camera

,

rear view camera system
기본 정보
원래 장소: 중국 광둥
브랜드 이름: KING CROWN
인증: RoHS
결제 및 배송 조건
포장 세부 사항: 판지 상자
배달 시간: 45일
지불 조건: T/T,L/C
공급 능력: 달 당 1000 세트
제품 설명
Integrated Brake Light Camera System for Light Commercial Vehicles
Fleet Safety Rear Camera for Fiat Doblo & Opel Combo
This Brake Light Type Reverse Camera is an OEM-engineered rear-view solution specifically designed for Fiat Doblo (2010 - ) and Opel Combo (2011-2018) light commercial vehicles. By integrating the camera module directly into the high-mount stop lamp housing, the system provides a factory-style appearance while significantly improving rear visibility for professional driving environments.
Technical Specifications
Item Specification
Product Type Brake Light Type Reverse Camera
Vehicle Compatibility Fiat Doblo (2010- ), Opel Combo (2011-2018)
Mounting Position High-mount stop lamp (3rd brake light)
Image Sensor CMOS / AHD Sensor (OEM selectable)
Video System AHD / CVBS (PAL / NTSC optional)
Resolution 720P / 1080P (AHD), 480/600TVL (CVBS)
Viewing Angle 120°-170° wide angle
Night Vision IR LEDs / low-light enhancement
Minimum Illumination 0.01 Lux (with IR)
Waterproof Rating IP67 / IP68
Housing Material Automotive-grade ABS + sealed lens
Operating Voltage DC 12V (±10%)
Operating Temperature -20°C to +70°C
Video Output RCA / OEM connector optional
Reverse Trigger Supported
Certification CE / RoHS
OEM Customization Logo, cable length, connector, mirror image
Application Fleet vans, cargo vans, service vehicles

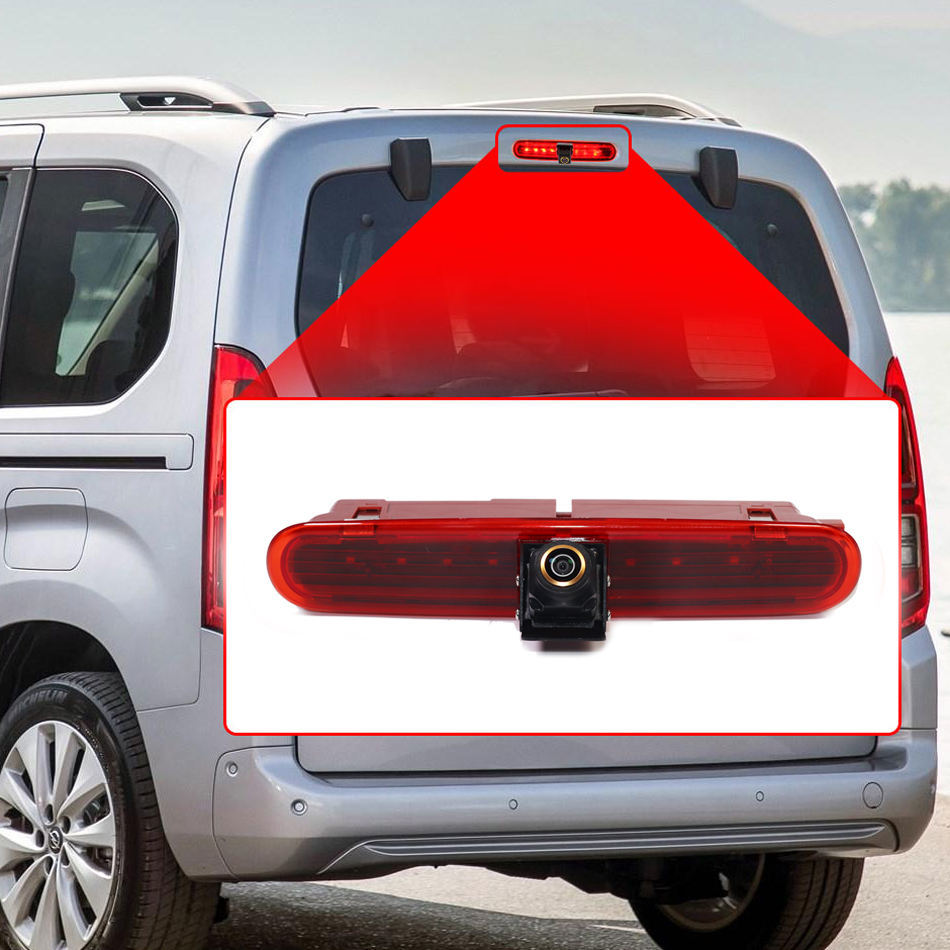

OEM-Integrated Mechanical Design
The camera is housed within a vehicle-specific third brake light enclosure, engineered to match the original lamp geometry and mounting points. This design eliminates the need for body drilling or external brackets, ensuring non-destructive installation and long-term structural stability. The sealed housing maintains original rear aesthetics while protecting the optical module from water ingress, dust, vibration, and road contaminants.
Optimized Rear Visibility for Commercial Use
Mounted at a higher position than conventional bumper cameras, the brake light camera delivers a broader and more natural rear perspective, reducing blind zones directly behind the vehicle. This elevated viewing angle is particularly effective for cargo vans operating in urban delivery, fleet logistics, parking-restricted environments, and loading docks, where precise reversing control is critical.
Imaging Performance & Signal Compatibility
The camera supports both AHD (720P/1080P) and CVBS video standards, making it compatible with a wide range of aftermarket and OEM monitors, head units, and MDVR systems. A wide-angle lens (up to 170°) ensures lane-edge visibility without excessive distortion, while optional mirror/normal image switching allows flexible system integration.

Low-light performance is enhanced through infrared LED support or starlight-level sensors, enabling stable imaging during night operations, indoor parking, or poorly lit delivery zones. This ensures consistent visual feedback regardless of time or environment.
Environmental Reliability for Fleet Operation
Designed for continuous outdoor exposure, the camera meets IP67/IP68 waterproof standards and operates reliably across a wide temperature range. The sealed lens assembly and automotive-grade electronics withstand vibration, thermal cycling, and frequent vehicle washing—key requirements for fleet and commercial vehicle deployment.
System Integration & OEM Customization
This product is engineered as a platform-ready OEM component. Cable length, connector type, image orientation, branding, and signal format can be customized to align with specific fleet platforms or vehicle electronics architectures. It integrates seamlessly with reverse trigger systems and aftermarket parking displays, enabling rapid deployment across mixed vehicle fleets.
Typical Applications
  • Fleet safety upgrades for Fiat Doblo & Opel Combo
  • Urban delivery and courier vans
  • Service and utility vehicles
  • Parking assistance systems for LCVs
  • OEM / ODM rear-view camera programs
