Heavy Duty Vehicle Camera System with 360 Degree View, AHD 1080P, SONY Sensor, and Night Vision

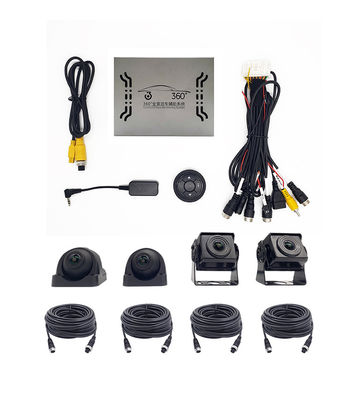

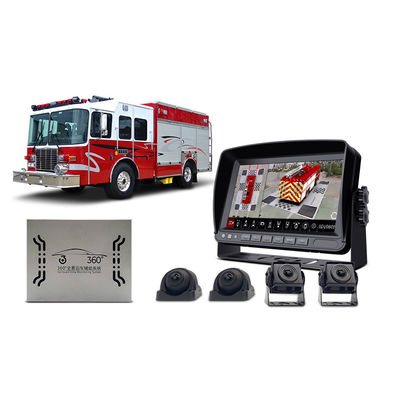

The OEM 360 Degree Camera System for Buses is a professional-grade surround view solution developed specifically for public transportation, school buses, and commercial fleet vehicles. By combining AHD 1080P high-definition cameras with original SONY image sensors, this system delivers reliable, sharp, and stable imaging under both daytime and nighttime conditions.

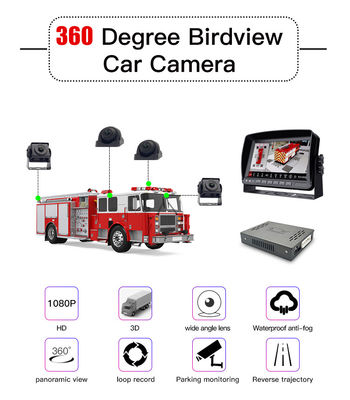

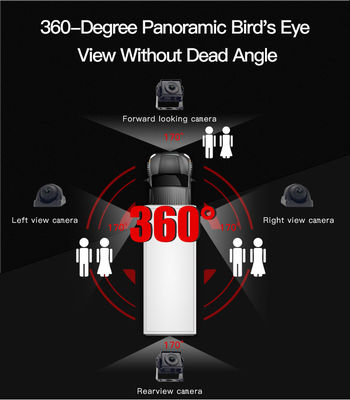

Through real-time image stitching, the system provides a complete 360° bird's-eye view around the bus, significantly reducing blind spots and improving driver awareness during turning, docking, reversing, and low-speed maneuvering. Designed with OEM integration in mind, it supports large-scale fleet deployment and long-term commercial operation.
Product Characteristics
- 360° panoramic surround view for buses
- AHD 1080P high-definition imaging
- SONY CMOS sensors for stable image quality
- Night vision for all-weather operation
- IP68 waterproof cameras for outdoor installation
- Designed for commercial fleet durability
- Ideal for OEM bus safety and fleet monitoring systems
Product Specification
| Type |
Vehicle Camera System |
| View Angle |
360 Degree |
| Function |
Waterproof, NIGHT VIEW |
| Voltage |
DC 12V |
| Lens |
6 Glass Lens |
| Sensor |
GC 2053 |
| Night vision |
Night Vision Support |
| Video Standard |
PAL NTSC Optional |
| Material |
Metal |
| Working Temperature (°C) |
20-+60 |
Applications
- City and municipal buses
- School bus safety systems
- Tourist and intercity coaches
- Shuttle and airport buses
- Commercial passenger fleets
- OEM bus manufacturing and retrofit projects
Customer Service
We provide end-to-end OEM support, including technical consultation, installation guidance, system calibration assistance, and after-sales service. All systems are supplied with a 12-month warranty, and our engineering team offers fast-response support for fleet projects and long-term cooperation.
FAQs
Q1: Is this system suitable for OEM and fleet-level projects?
A: Yes, it is designed specifically for OEM integration and large fleet deployment.
Q2: Can it operate on both 12V and 24V bus systems?
A: Yes, it supports standard commercial vehicle voltage ranges.
Q3: How reliable is the night vision performance?
A: The SONY sensors provide excellent low-light sensitivity for night operation.
Q4: Can the system connect to existing bus DVR or MDVR units?
A: Yes, it is compatible with common fleet recording and monitoring systems.
Q5: Is customization available for camera layout and system configuration?
A: OEM and ODM customization services are fully supported.
